50mm Rifle Thermal Imaging Scope Manual Focused 2400m Detection Range

Product Details:
Place of Origin: CHINA
Brand Name: Milipol Asia
Certification: CE ROHS
Model Number: TS450
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: color box
Delivery Time: 45
Payment Terms: L/C, T/T, Western Union

Detail Information

Detector Type: 400×300 @17μm, Vox Focal Length: 50mm F1.12
Frame Rate: 50Hz Color Palettes: White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot
Hotspot Tracking: Available Magnification: 3.3-13.2x
Digital Zoom: 2×,4× Spectral: 8μm~14μm
Focusing: Manual Focus NETD: ≤50mk
FOV: 7.5°×5.6° Display: Colour 0.39-inch OLED Display, 1024×768
Eyepiece: Exit Pupil Distance 48mm, Eyepiece Magnification 14×
Highlight:

50mm Rifle Thermal Imaging Scope

,

Rifle Thermal Imaging Scope 2400m Range

,

infrared rifle scope attachment 2400m Range

Product Description

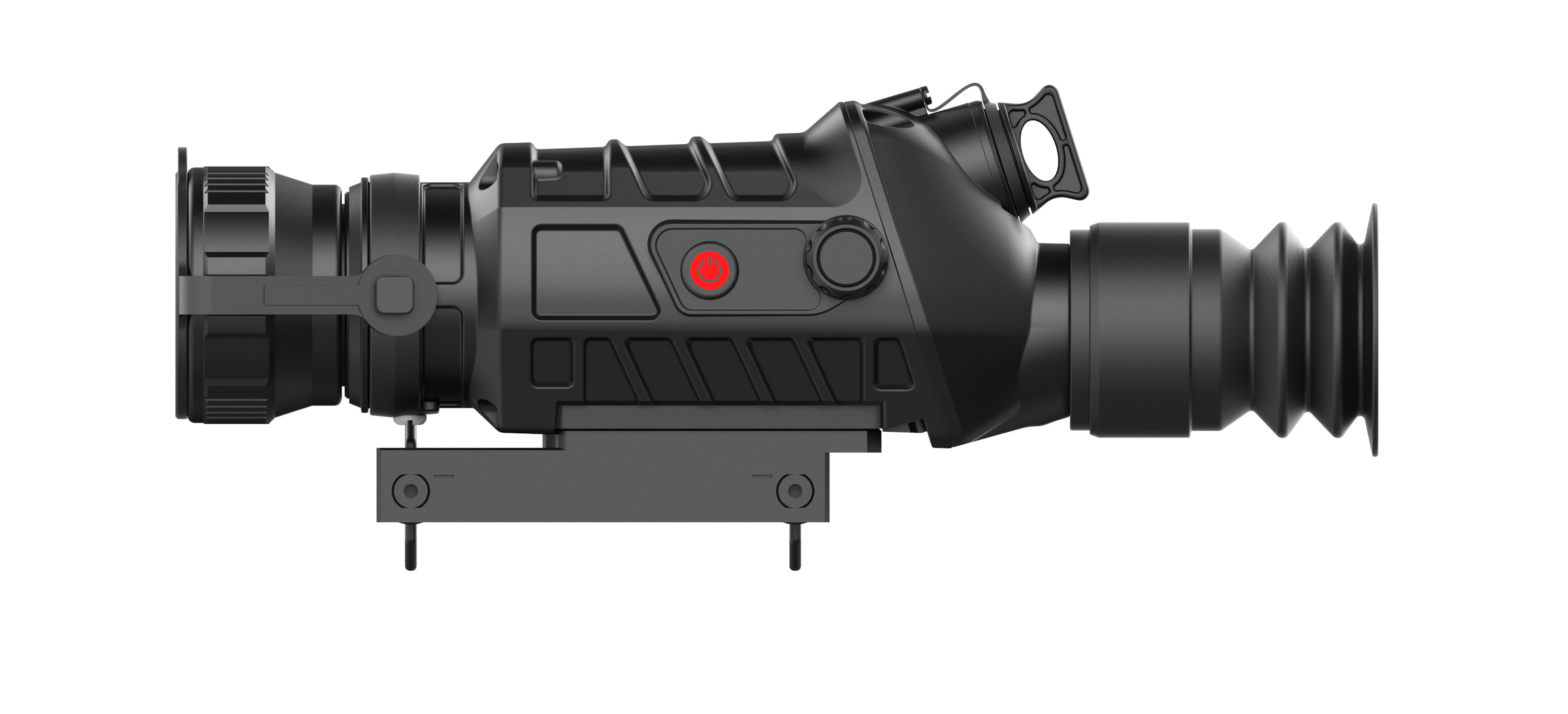

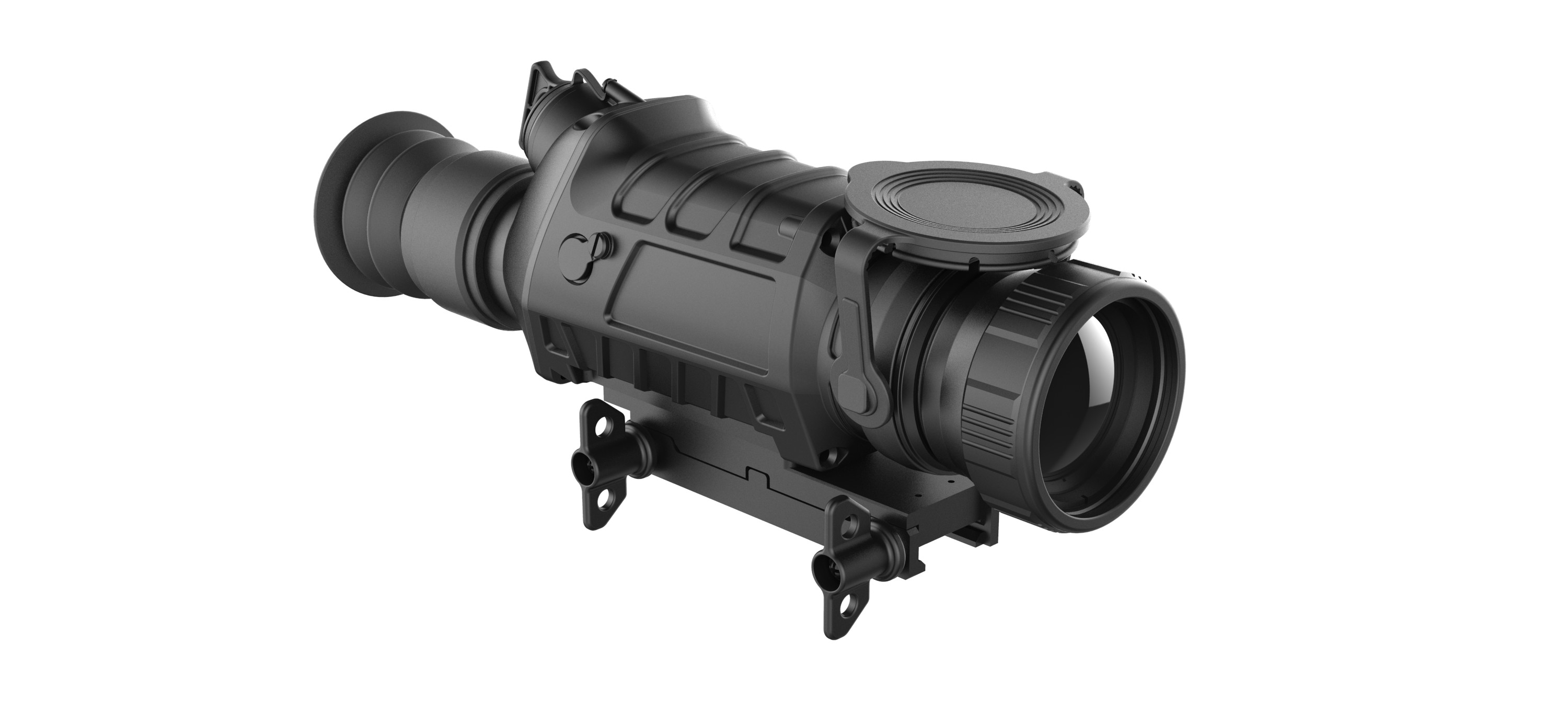

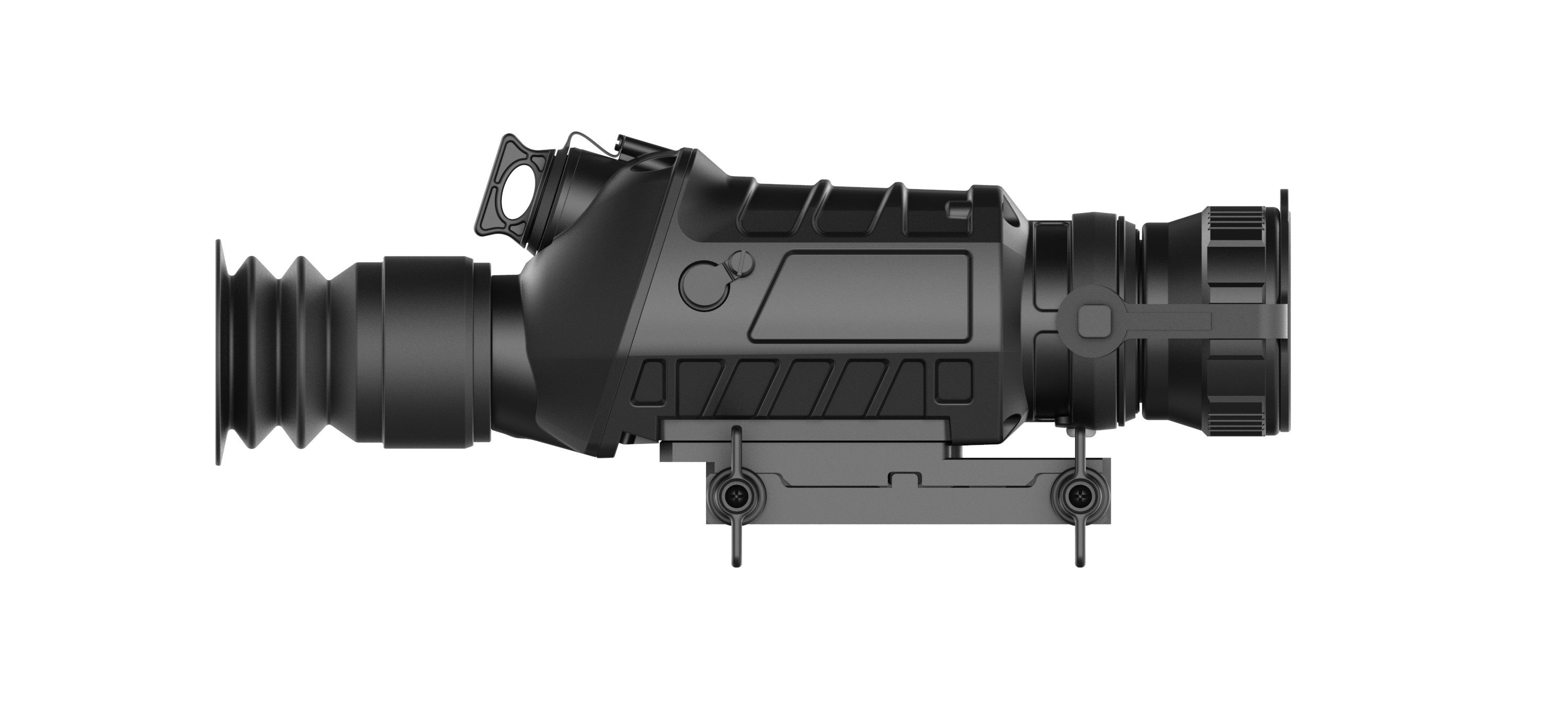

50mm Thermal Imaging Rifle Scope
With a detection range up to 2400 meters (2600yd), the Extreme Thermal Rifle Scope offers unprecedented performance in a rugged and reliable package.

Featuring

NETD ≤50mk, 400×300 @17μm Vox metal-encapsulated thermal sensor, along with class-leading technology, the Guide Thermal Rifle Scope is a force to be reckoned with even in the toughest conditions.





DETECTION RANGE

  • Human 1.8x0.5m : 1000m
  • Vehicle 2.3mx2.3m : 2400m


SPECIFICATIONS

  • Detector Type: 400×300 @17μm, Vox
  • Spectral: 8μm~14μm
  • NETD: ≤50mk
  • Focal Length: 35mm F1.2
  • Focusing: Manual
  • FOV: 10.7°x8.0°
  • Display: 0.39" 1024x768 OLED
  • Eyepiece: Exit pupil distance 48mm, Eyepiece magnification 14x
  • Magnification: 2.3 - 9.2x
  • Video Output: PAL 50Hz
  • External Video Display: Full Color Video With External Interface
  • Frame Rate: 50Hz
  • Digital Zoom: 2x / 4x
  • Color Palettes: White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3, Green Hot, Blue Hot
  • Picture-In-Picture: Adjustable On / Off
  • Hotspot Tracking
  • Compensation Modes: Auto Compensation / Shutter Compensation / Scene Compensation
  • Calibration: 25m/50m/100m
  • Stadiametric Rangefinder: 1.8m/0.5m/0.25m
  • Firearm Type Selection: 6 Types
  • Integrated Picatinny Rail Mount
  • Battery: Li-ion battery 18650 x1 (requires external charger)
  • Battery Operating Time: ≥3H(Standard low temp battery, observation only)
  • Weatherproofing: IP67
  • Operating Temperature: -40°C - 50°C
  • Shock Resistance: 500g /1ms
  • Weight: 660g
  • Dimensions: 230mmx90mmx75mm
  • Certification: RoHS & CE



IN THE BOX

1x Thermal Imaging Rifle Scope (50mm lens)
1x Lens cap
1x charger
1x 18650 Li-ionbattery (2200mAh)
1x Video-out cable
1x User manual
1x Transport case
