Detail Information
Detector Type:	400 × 300 @ 17μm, 7.5μm ～ 14μm, NETD ≤ 50mk	Magnification:	3.3~13.2
Frame Rate:	50Hz	Digital Zoom:	1X~4X (Smooth Zoom)
Color Palettes:	White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3	Focal Length:	50mm/F1.2
Eyepiece:	Monocular, Exit Pupil≥10mm, Adjustable Diopter-4~＋2	Focusing:	Manual Focus
FOV:	7.8° × 5.8°	Screen:	1280×960, 0.4" Colour LCOS Display (Feel Like Watching 22-inch Screen At 1m)
Scenes Modes:	Enhanced, Highlight, Forest, Desert, City, Snow, And Default (indoor)
Highlight:	50mm Military Thermal Imaging Monocular , 50mm Thermal Imaging Monocular For Hunting 50Hz , 50mm handheld thermal monocular 50Hz

Product Description

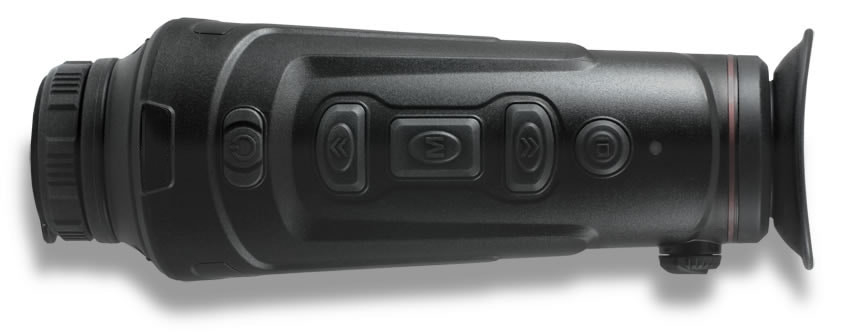

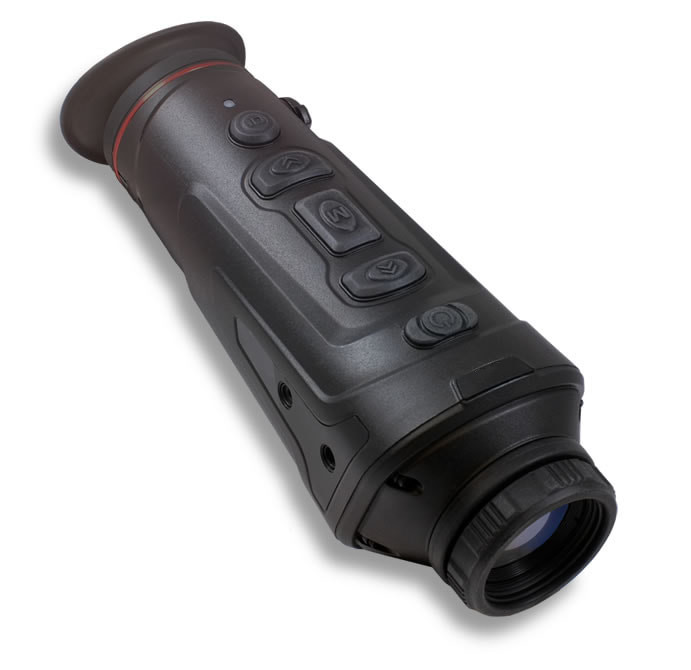

35mm Thermal Imaging Monocular

Featuring a fast F1.2 wide angle 35mm lens and a high sensitivity Thermal Sensor, the GUIDE Thermal Imaging Monocular range offers an unprecedented feature set in a robust and weather proofed design.
Along with a NETD ≤50mk, 400×300 @17μm Vox metal-encapsulated thermal sensor, this series is truly a reliable companion under any circumstances.

Guide Track IR Hand-Held Thermal imaging monocular Specifications:

• Detector Type: 400 × 300 @ 17μm, 7.5μm ～ 14μm, NETD ≤ 50mk

• Focal Length: 50mm/F1.2

• Focusing: Manual Focus

• FOV: 7.8° × 5.8°

• Screen: 1280×960, 0.4" Colour LCOS Display (Feel like watching 22-inch screen at 1m)

• Eyepiece: Monocular, Exit pupil≥10mm, Adjustable diopter-4~＋2

• Magnification: 3.3~13.2

• Frame Rate: 50Hz

• Digital Zoom 1X~4X (Smooth zoom)

• Color Palettes White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3

• Scenes Modes Enhanced, Highlight, Forest, Desert, City, Snow, and Default (indoor)

• Picture-in-picture enlarged image is displayed on the upper left, upper-middle or upper right

• Main Functions: Photo and video, Wi-Fi, hotspot tracking, stadiametric rangefinder, image enhancement, brightness and contrast of image are adjustable, auto power-off, auto sleep, super power-save mode, the work indicator could be shut off

• Compensation Modes: Auto Compensation / Shutter Compensation / Scene Compensation

• Indicate Box: Red,/yellow/green, the coordinates of the indicate box is adjustable

• Memory Card: 16 GB

• Battery Type: Internal Li-ion battery (2x18650, 6000mAh)

• Battery Operating Time: ≥5h

• Video Output: Micro HDMI

• External Connection: External Connection by a Picatinny rail

• Operating Temperature: -10℃～50℃

• Storage Temperature: -30℃～60℃

• Encapsulation: IP66, 1-meter drop test

• Weight: 535g

• Dimensions: 214mm × 65mm × 71mm

• Package Contents: Power adapter / USB cable / Micro HDMI cable / Lens cover / Wrist strap / Lining package / Quick Start Guide

Detection Range:

• Human - 1.8m×0.5m: 1400m

• Vehicle - 2.3m×2.3m: 3000m

Recognition Range

• Human - 1.8m×0.5m: 700m

• Vehicle - 2.3m×2.3m: 1400m.

IN THE BOX

Thermal XTR 50mm Monocular
Power Adapter
USB Cable
Micro HD Multimedia Interface Cable
Lens Cover
Wrist Strap
Shoulder Strap

Guide 50mm Military Thermal Imaging Monocular For Hunting 50Hz 0

Guide 50mm Military Thermal Imaging Monocular For Hunting 50Hz 1

Tag:

Product Details:
Place of Origin:	CHINA
Brand Name:	Milipol Asia
Certification:	CE ROHS
Model Number:	TrackIR series
Payment & Shipping Terms:
Minimum Order Quantity:	200
Price:	negotiable
Packaging Details:	color box
Delivery Time:	45
Payment Terms:	L/C, T/T, Western Union
