Guide TA435 Thermal Imaging Scope Thermal Clip On Rifle Scope 35mm
Guide TA435 Thermal Imaging Scope Thermal Clip On Rifle Scope 35mm Guide TA435 Thermal Imaging Scope Thermal Clip On Rifle Scope 35mm Guide TA435 Thermal Imaging Scope Thermal Clip On Rifle Scope 35mm

Guide TA435 Thermal Imaging Scope Thermal Clip On Rifle Scope 35mm

Product Details:
Place of Origin: CHINA
Brand Name: Milipol Asia
Certification: CE ROHS
Model Number: TA435
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: color box
Delivery Time: 45
Payment Terms: L/C, T/T, Western Union
Contact Now

Detail Information
Resolution: 400×300@17μm Spectral Range: 8μm～14μm
Focal Length: 35mm F1.2 Frame Rate: 50Hz（PAL）
Colour Palettes: Black Hot, White Hot, Red Hot, Green Hot Digital Zoom: 2-4×
Auto Tracking: Hotspot Track FOV: 10.66°×8.0°
NETD: ≤50mk Focusing: Manual Focus
Calibration: Automatic Calibration/ Manual Calibration (shutter) /Manual Scene Compensation
Highlight:

Guide TA435 Thermal Imaging Scope

,

Thermal Clip On Rifle Scope 35mm

,

35mm thermal imaging rifle scope attachment

Product Description

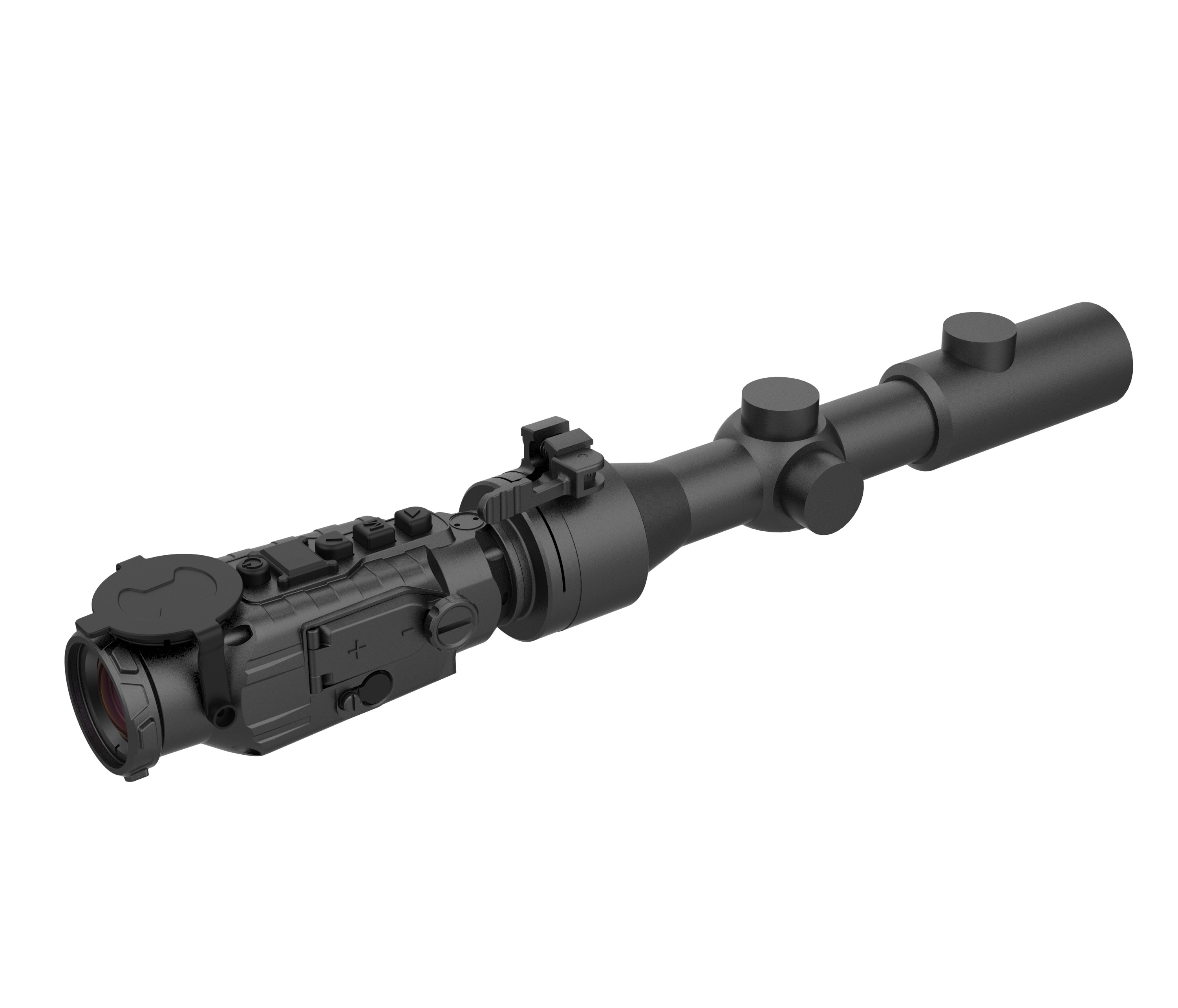

Use the Clip-on as a handheld tracker or turn any traditional riflescope into a thermal scope with a simple attachment. The Clip-on’s 4 power zoom and 4 color palettes ensures nothing will make it through your sight picture unnoticed. GUIDE's Clip-on will help you take night hunting to a whole new level



Features:

  • 4 color palettes
  • Stadiametric ranging
  • Hot track
  • Manual and auto NUC
  • Converts traditional riflescope to a thermal scope
  • Use the zoom on your traditional scope to enlarge your target
  • Adjustable contrast
  • Adjustable brightness
  • IP67
  • Available in 25mm, 35mm objective and 50mm objective

Specifications:


Contrast/Brightness: Adjustable
Battery: 2x CR123 batteries
Charging: On External charger
Working Time: Continuous operating over 3 hours @25℃
4-Pin LEMO Interface: Analog & video output
OLED: Colourful 0.39 inch OLED screen 1024×768
Operating Temperature: -30℃-50℃
Storage Temperature: -45℃-70℃
Humidity: Working and storage10% ～ 95%, Non condensing
Impact: 500G/1ms
IP level: IP67
Weight: ≤400g

Size: 150mm × 52mm × 57mm

Note: to mount this unit to a scope you'd need one of our guide scope adapters
