Detail Information
Detector Type:	640×480@12µm, VOx	Spectral:	8µm~14µm
NETD:	50mk	Focal Length:	25mm
FOV:	17.46°×13.14°	Display Screen:	Full-color 0.39'OLED Screen,1024×768
Eyepiece:	Pupil Distance Of Eyepiece 48mm,Eyepiece Magnification 14×	Magnification:	1.4×~11.2×
Frame Rate:	50Hz	Digital Zoom:	1×~8×
Color Palettes:	White Hot, Black Hot,customized Red Hot, Green Hot, Iron Red, Blue Heat	IP Level:	IP67
Zero Calibration:	50m/100m/200m/300m/500m	Certificate:	RoHS, CE, FCC, EAC, UN38.3 (Battery Certificate)
USB:	Type-C
Highlight:	TU620 Night Vision Thermal Scope , Thermal Scope For Coyote Hunting 25mm , 25mm Night Vision Rifle Scope

Product Description

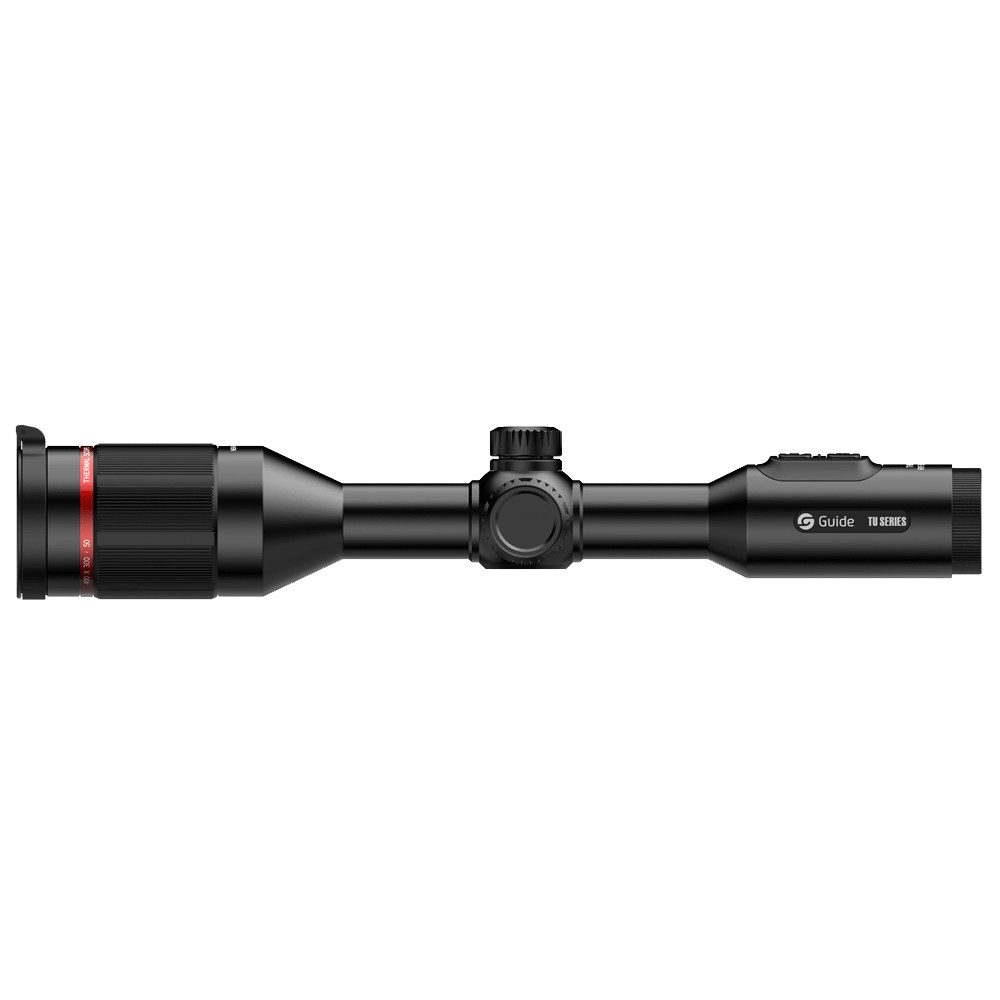

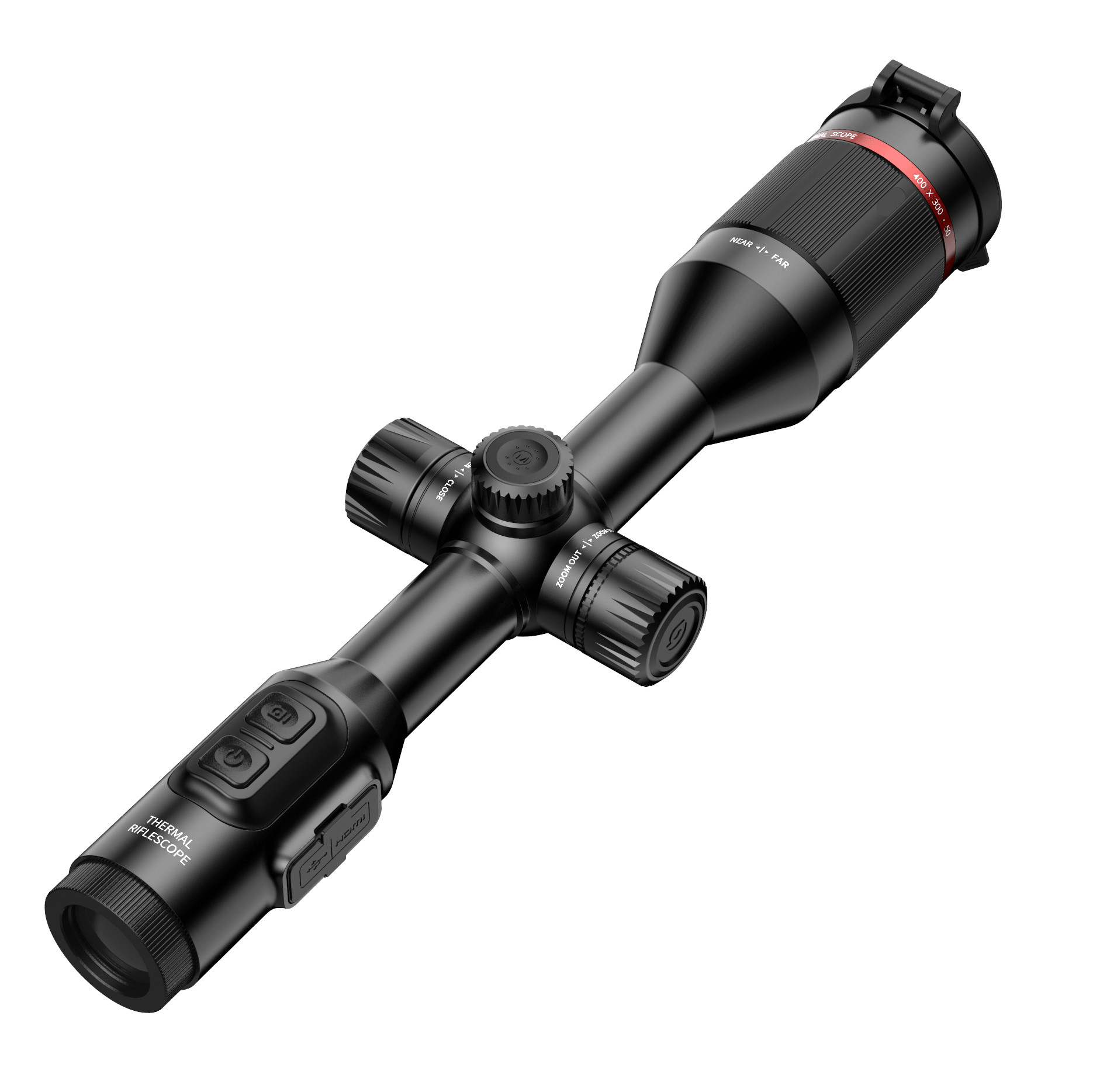

Thermal Imaging Attachment

Guide TU thermal imaging attachment retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters. TU series adopts 400x300 high- sensitivity thermal detector with three different lens options of 25mm,35mm,50mm, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.

Package Contents
Standard	Thermal Imaging Riflescope, Lens Cover, Adapter, Battery, Charger, TYPE-C Data Cable, Micro HDMI Video Cable, Eye Mask, Picatinny Tube Clip×2, Pouch, Shoulder strap, Quick Start Guide
Optional	Battery, Remote Control
Detection Range
Human:1.8m×0.5m	700m	1000m	1400m
Vehicle:2.3m×2.3m	1700m	2400m	3000m
Recognition Range
Human:1.8m×0.5m	350m	500m	700m
Vehicle:2.3m×2.3m	700m	1000m	1400m

640×480@12μm, VOx Detector Type

25mm Focal Length

17.46°×13.14°FOV

4X~11.2X Magnification

Attaching the scope to your weapon

Universal 30mm tube
With the help of 30mm mounting rings easy to use on many weapons
Mountings can be found under "optional accessories" or via this link
For Weaver/Picatinny, Dovetail (air gun) etc.

Useful functions

Hot Track function, where animals / people with cursor are directly "pointed" at. Stadiametric range finder (calculates the approximate distance to an animal or person), Picture-in-Picture mode to further magnify a small part of the image. Wi-fi and Bluetooth to share and view recordings. When a smartphone/tablet is connected to the scope, someone else can enjoy everything that you see. and it has Free app (iOS and Android)

User convenience

1. Shock resistance: 500G/1ms
2. IP67 certified: waterproof, dustproof and shockproof
3. Ultra-long operating time of up to 10 hours using only one 18650 battery (charger + battery included)
4. Weighs only 980 grams
5. USB-C connection (cable included)
6. Certifications: RoHS, CE, FCC, EAC, UN38.3 (battery certificate)


Properties of the reticle

Choice of 10 different reticles

Reticle available in 6 different colors and 10 levels of brightness

Reticle magnifies with the zoom, similar to First Focal Plane of optical rifle scopes

Save 10 zero profiles to use the rifle scope directly on different weapons without having to shoot again

Zero calibration distances: 50 / 100 / 200 / 300 / 500m

Easy manual elevation / width adjustment on the body

Application

> Outdoor Observing

> Law Enforcement

Tag:

Product Details:
Place of Origin:	CHINA
Brand Name:	Milipol Asia
Certification:	CE ROHS
Model Number:	TU620
Payment & Shipping Terms:
Minimum Order Quantity:	200
Packaging Details:	color box
Payment Terms:	L/C, T/T, Western Union
