Guide TU Series TU650 Thermal Imaging Scope 50mm Thermal Imaging Rifle Scope With Red Dot
Guide TU Series TU650 Thermal Imaging Scope 50mm Thermal Imaging Rifle Scope With Red Dot Guide TU Series TU650 Thermal Imaging Scope 50mm Thermal Imaging Rifle Scope With Red Dot

Guide TU Series TU650 Thermal Imaging Scope 50mm Thermal Imaging Rifle Scope With Red Dot

Product Details:
Place of Origin: CHINA
Brand Name: Milipol Asia
Certification: CE ROHS
Model Number: TU620
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: color box
Payment Terms: L/C, T/T, Western Union
Contact Now

Detail Information
Detector Type: 640×480@12µm, VOx Spectral: 8µm~14µm
NETD: 50mk Focal Length: 50mm
FOV: 8.78°×6.59° Display Screen: Full-color 0.39'OLED Screen,1024×768
Eyepiece: Pupil Distance Of Eyepiece 48mm,Eyepiece Magnification 14× Magnification: 2.8×~22.4×
Frame Rate: 50Hz Digital Zoom: 1×~8×
Color Palettes: White Hot, Black Hot,customized Red Hot, Green Hot, Iron Red, Blue Heat IP Level: IP67
Zero Calibration: 50m/100m/200m/300m/500m Certificate: RoHS, CE, FCC, EAC, UN38.3 (Battery Certificate)
USB: Type-C
Highlight:

TU650 Thermal Imaging Scope

,

TU Thermal Imaging Scope 50mm

,

TU650 Rifle Scope With Red Dot

Product Description



Thermal Imaging Attachment



640×480IR resolution

50mm Focal Length

8.78°×6.59° FOV

2.8X~22.4X Magnification



Package Contents


Standard Thermal Imaging Riflescope, Lens Cover, Adapter, Battery, Charger, TYPE-C Data Cable, Micro HDMI Video Cable, Eye Mask, Picatinny Tube Clip×2, Pouch, Shoulder strap, Quick Start Guide
Optional Battery, Remote Control
Detection Range
Human:1.8m×0.5m 700m 1000m 1400m
Vehicle:2.3m×2.3m 1700m 2400m 3000m
Recognition Range
Human:1.8m×0.5m 350m 500m 700m
Vehicle:2.3m×2.3m 700m 1000m 1400m





Useful functions

Hot Track function, where animals / people with cursor are directly "pointed" at
Stadiametric range finder (calculates the approximate distance to an animal or person)
Picture-in-Picture mode to further magnify a small part of the image
Wi-fi and Bluetooth to share and view recordings
When a smartphone/tablet is connected to the scope, someone else can enjoy everything that you see
Free app (iOS and Android)

User convenience

Shock resistance: 500G/1ms
IP67 certified: waterproof, dustproof and shockproof

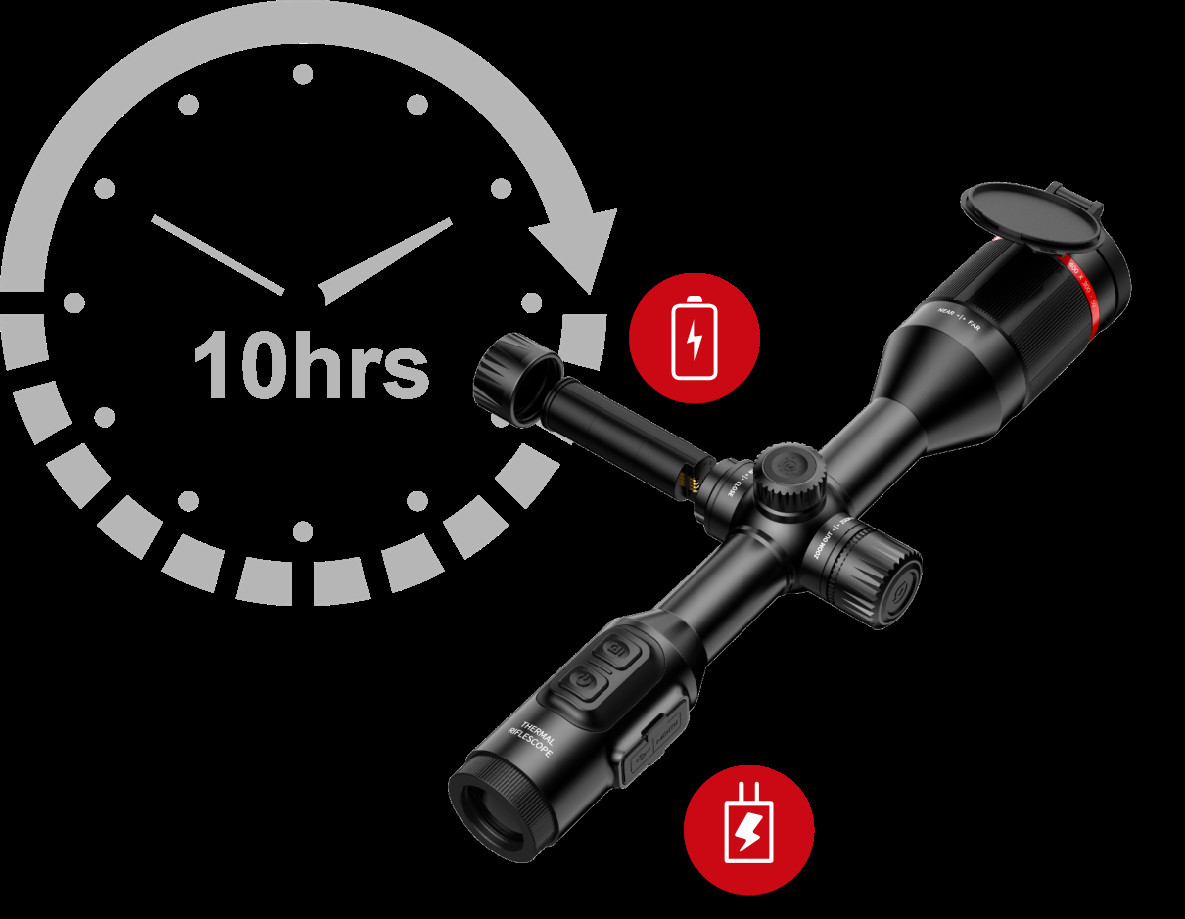

Ultra-long operating time of up to 10 hours using only one 18650 battery (charger + battery included)
Weighs only 980 grams
USB-C connection (cable included)
Certifications: RoHS, CE, FCC, EAC, UN38.3 (battery certificate)


Properties of the reticle

Choice of 10 different reticles
Reticle available in 6 different colors and 10 levels of brightness
Reticle magnifies with the zoom, similar to First Focal Plane of optical rifle scopes
Save 10 zero profiles to use the rifle scope directly on different weapons without having to shoot again
Zero calibration distances: 50 / 100 / 200 / 300 / 500m
Easy manual elevation / width adjustment on the body



 Guide TU Series TU650 Thermal Imaging Scope 50mm Thermal Imaging Rifle Scope With Red Dot 0Guide TU Series TU650 Thermal Imaging Scope 50mm Thermal Imaging Rifle Scope With Red Dot 1Guide TU Series TU650 Thermal Imaging Scope 50mm Thermal Imaging Rifle Scope With Red Dot 2
