Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Milipol Asia |
| Certification: | CE ROHS |
| Model Number: | TrackIR series |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 200 |
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 45 |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Detector Type: | 400 × 300 @ 17μm, 7.5μm ～ 14μm, NETD ≤ 50mk | Magnification: | 1.7~6.8 |
|---|---|---|---|
| Frame Rate: | 50Hz | Digital Zoom: | 1X~4X (Smooth Zoom) |
| Color Palettes: | White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3 | Focal Length: | 35mm/F1.2 |
| Eyepiece: | Monocular, Exit Pupil≥10mm, Adjustable Diopter-4~＋2 | Focusing: | Manual Focus |
| FOV: | 11.1° × 8.3° | Screen: | 1280×960, 0.4" Colour LCOS Display (Feel Like Watching 22-inch Screen At 1m) |
| Scenes Modes: | Enhanced, Highlight, Forest, Desert, City, Snow, And Default (indoor) | ||
| Highlight: | IR Hand Held Thermal monocular,Hand Held Thermal monocular 35mm,Guide Track IR monocular Thermal Scope |
||
Product Description

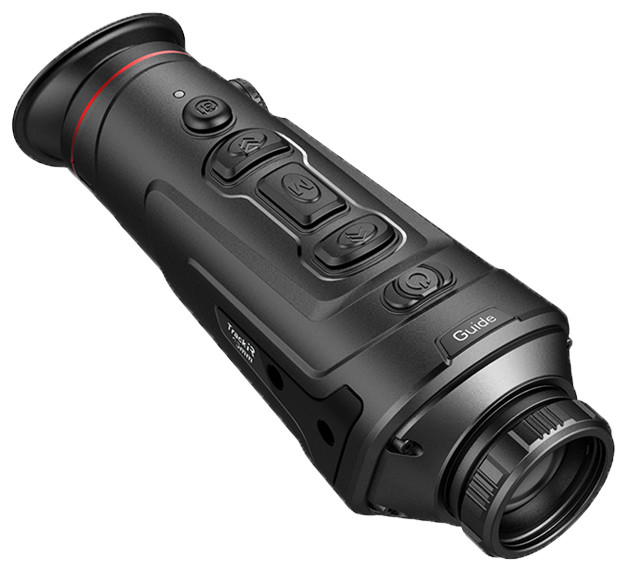

Guide Track IR Hand-Held Thermal imaging monocular: 35mm Lens with Wi-Fi
TrackIR series is Guide’s new launched handheld thermal imaging monocular designed for professional hunters. With a 400x300 IR sensor and 1280x960 HD display, it provides adaptable and excellent thermal imaging in any conditions. Support smooth zoom, built-in stadiametric rangefinder, image quality adjustment, picture-in-picture functions. At a high frame rate of 50Hz, TrackIR captures sharp thermal imaging throughout dynamic and rapid motion in distance. It also supports connecting accessories to realize more functions.
A fantastic alternative to Pulsar - with faster connectivity and stronger wifi to mobile signal.
View on your mobile device with the Track IR App
Guide Track IR Hand-Held Thermal imaging monocular Specifications:
| • Detector Type: 400 × 300 @ 17μm, 7.5μm ～ 14μm, NETD ≤ 50mk |
| • Focal Length: 35mm/F1.2 |
| • Focusing: Manual Focus |
| • FOV: 11.1° × 8.3° |
| • Screen: 1280×960, 0.4" Colour LCOS Display (Feel like watching 22-inch screen at 1m) |
| • Eyepiece: Monocular, Exit pupil≥10mm, Adjustable diopter-4~＋2 |
| • Magnification: 1.7~6.8 |
| • Frame Rate: 50Hz |
| • Digital Zoom 1X~4X (Smooth zoom) |
| • Color Palettes White Hot, Black Hot, Red Hot 1, Red Hot 2, Red Hot 3 |
| • Scenes Modes Enhanced, Highlight, Forest, Desert, City, Snow, and Default (indoor) |
| • Picture-in-picture enlarged image is displayed on the upper left, upper-middle or upper right |
| • Main Functions: Photo and video, Wi-Fi, hotspot tracking, stadiametric rangefinder, image enhancement, brightness and contrast of image are adjustable, auto power-off, auto sleep, super power-save mode, the work indicator could be shut off |
| • Compensation Modes: Auto Compensation / Shutter Compensation / Scene Compensation |
| • Indicate Box: Red,/yellow/green, the coordinates of the indicate box is adjustable |
| • Memory Card: 16 GB |
| • Battery Type: Internal Li-ion battery (2x18650, 6000mAh) |
| • Battery Operating Time: ≥5h |
| • Video Output: Micro HDMI |
| • External Connection: External Connection by a Picatinny rail |
| • Operating Temperature: -10℃～50℃ |
| • Storage Temperature: -30℃～60℃ |
| • Encapsulation: IP66, 1-meter drop test |
| • Weight: 485g |
| • Dimensions: 192mm × 65mm × 71mm |
| • Package Contents: Power adapter / USB cable / Micro HDMI cable / Lens cover / Wrist strap / Lining package / Quick Start Guide |
| Detection Range: |
| • Human - 1.8m×0.5m: 1000m |
| • Vehicle - 2.3m×2.3m: 2400m |
| Recognition Range |
| • Human - 1.8m×0.5m: 500m |
| • Vehicle - 2.3m×2.3m: 1000m. |
Guide Track IR Hand-Held Thermal imaging monocular Features:
• Super concealment for professional hunters: work indicator can be shut down, anti-light-leakage eyepiece, super silent button, and noiseless shutter calibration
• Excellent ergonomic design: intuitive buttons can be quickly recognised by touching even in total darkness. Modern streamlined appearance and ergonomic design, TrackIR allows you to observe the target for a long time without fatigue
• Full colour 0.4" HD display with 1280 x 960 pixels gives crisp and delicate images improving the observation comfort

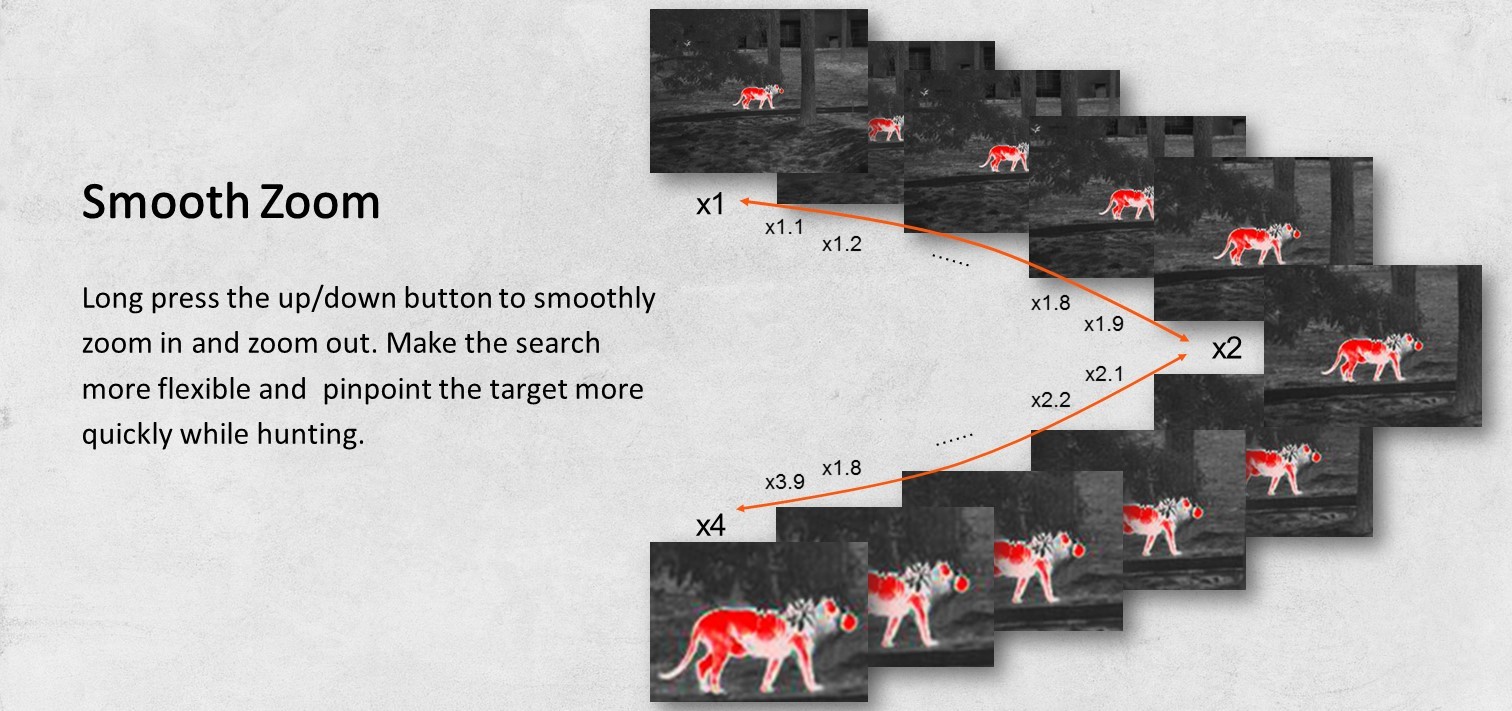

• Smooth zoom
• Built-in stadiametric rangefinder: accurately measures the ranging of observed objects with known height
• User-friendly UI and powerful mobile app: the thermal monocular and app support settings such as image quality adjustment, colour palettes switching, smooth zoom, hot spot tracking Wi-Fi and more
• Multiple scene modes: seven modes of "enhance/highlight/forest/desert/snow/city/default" can be switched by one button and the image can be adaptively adjusted for different scenes to highlight the target
• IP66 rugged, durable and quality guaranteed: IP66 protection level, 1 m drop test, suitable for all kinds of harsh weather
• 6000mAh large capacity battery for longer working time
• 2 Year warranty
