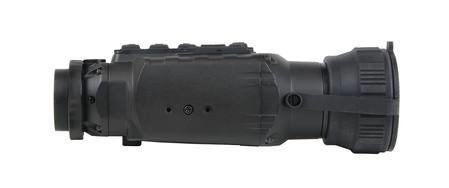

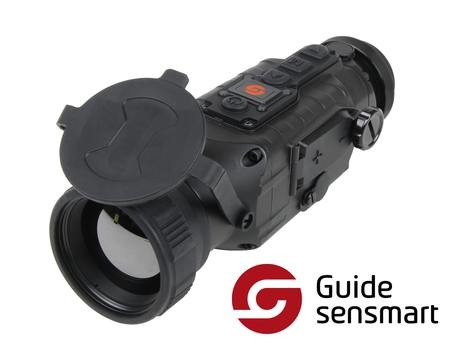

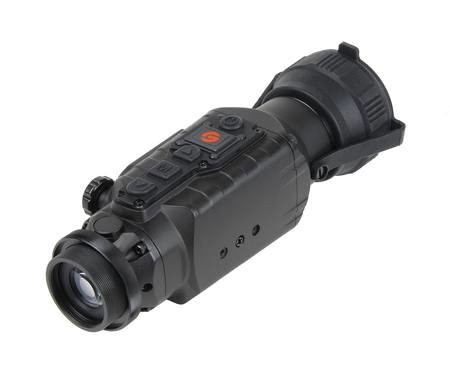

Guide TA450 Clip On Thermal Imaging Scope 50mm Front Mounted Thermal Scope

Product Details:
Place of Origin: CHINA
Brand Name: Milipol Asia
Certification: CE ROHS
Model Number: TA450
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: color box
Delivery Time: 45
Payment Terms: L/C, T/T, Western Union

Detail Information

Resolution: 400×300@17μm Spectral Range: 8μm~14μm
Focal Length: 50mm F1.2 Frame Rate: 50Hz(PAL)/ 60Hz(NSTC)
Colour Palettes: Black Hot, White Hot, Red Hot, Green Hot Digital Zoom: 2-4×
Auto Tracking: Hotspot Track FOV: 7.5°×5.6°
NETD: ≤50mk@25℃ /F1.0 Focusing: Manual Focus
Calibration: Automatic Calibration/ Manual Calibration (shutter) /Manual Scene Compensation
Highlight:

TA450 Thermal Imaging Scope 50mm

,

front mounted thermal scope 50mm

,

50mm clip on thermal scope attachment

Product Description

GUIDE TA Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager. It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular.

This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.

These units take 2x CR123 batteries, we have found the Nite Core Rechargeables are the best, lasting 70mins.

The best option for long lasting battery is a USB power pack which you can get several hours depending on the capacity, search 456006 for one we sell with a butt stock holder.



Features:


• Lightweight at 600g down from 1200g
• One step installation, no zeroing
• Mini, rugged and durable: Lightweight and ultra compact with IP67 protection
• Endow your daylight scope with Thermal Vision: TA Series is a versatile thermal imaging attachment which helps transform the daylight optics into a thermal imager. It can be taken as a thermal imaging attachment adding thermal imaging capability to your daylight scope, or as a portable thermal imaging monocular
• Unique optical design to ensure aiming accuracy: Features unique stray light analysis and processing technology, reserved window edge and strict assembly standards to ensure aiming accuracy and strong stability.
• Full colour OLED display
• One device for dual use: Turn it into a thermal imaging monocular with an eyepiece, or add it to a daylight scope, supporting picatinny rail, laser rangefinder and anemometer.
• Multiple scene modes: 3 scene modes switched by one button, especially the new updated models of "Enhance/Highlight", which could reduce range impurities and highlight the target effectively
• Multiple palettes to highlight the target: 4 pseudo-colour palettes (white hot, black hot, red hot, green hot) to timely identify it's location in the same and help achieve all-weather observations
• One click compensation to make image clearer: To help eliminate pepper noise, image jitter, stripe noise etc, making image clearer
• Wireless remote control



Specifications:


Contrast/Brightness: Adjustable
Battery: 2x CR123 batteries
Charging: On External charger
Working Time: 70 minutes with nitecore batteries
4-Pin LEMO Interface: Analog & video output
OLED: Colourful 0.39 inch OLED screen 1024×768
Pupil Distance: 10mm
Pupil Caliber: 20mm
Video Format: PAL/NTSC
View Finder: Monocular display(×2) ±5 adjustable diopter
Operating Temperature: -30℃-50℃
Storage Temperature: -45℃-70℃
Humidity: Working and storage10% ~ 95%, Non condensing
Impact: 500G/1ms
IP level: IP67
Weight: ≤450g
Size: 178mm × 58mm × 62mm

Note: to mount this unit to a scope you'd need one of our guide scope adapters
