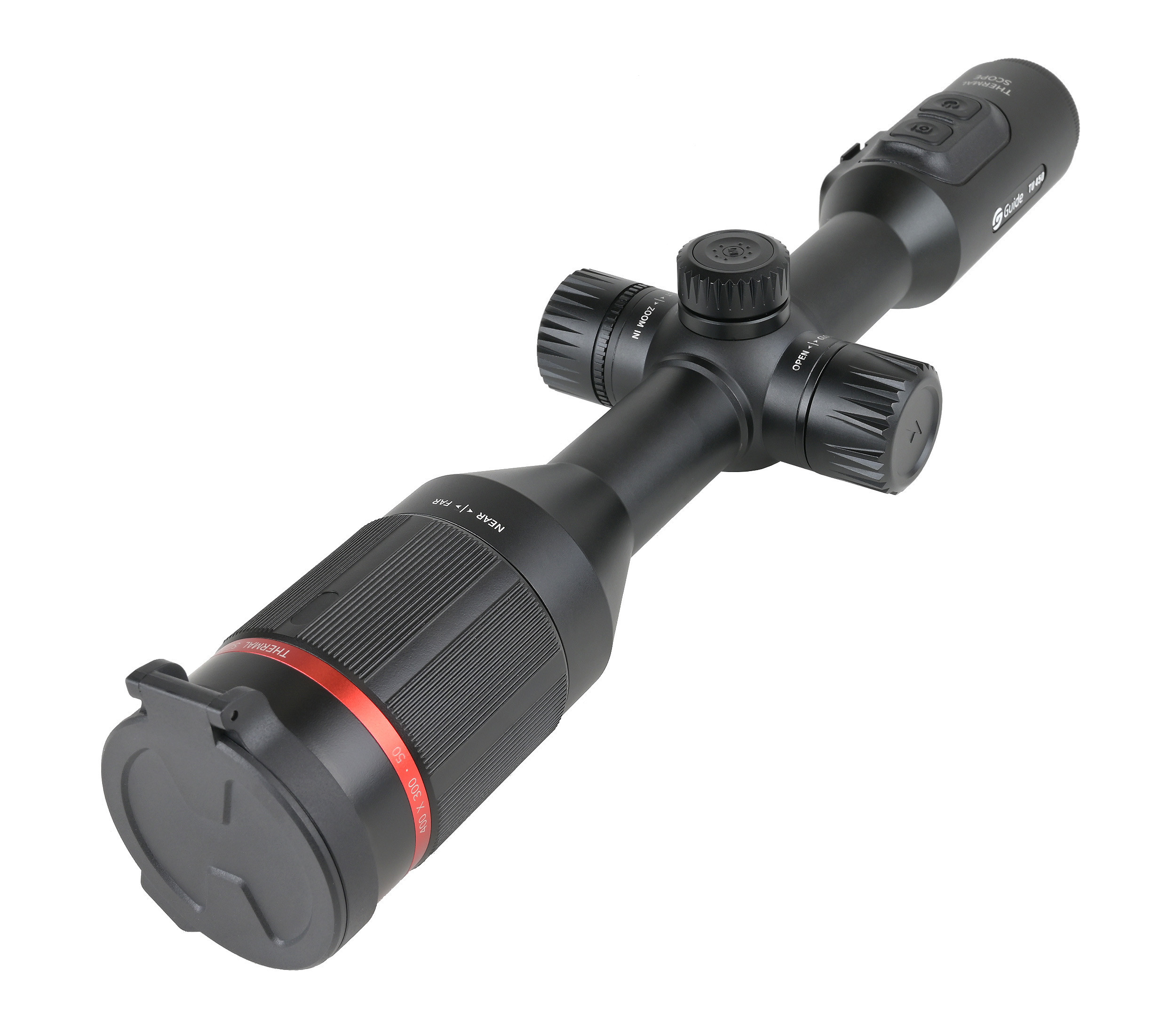

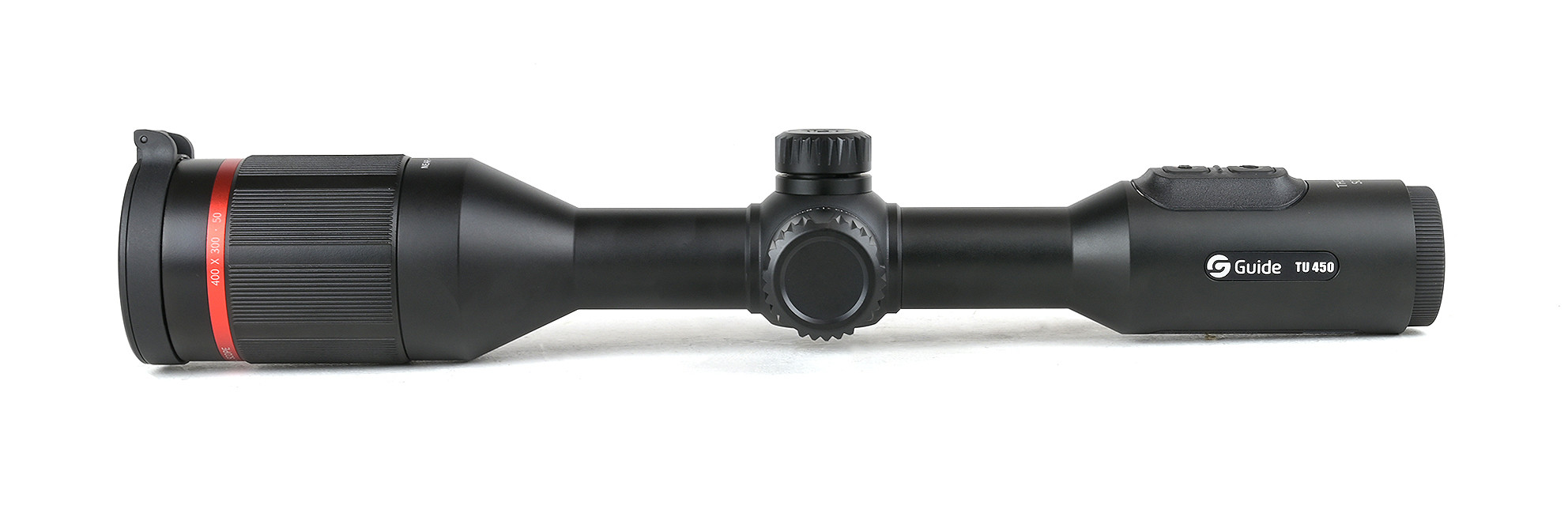

Guide TU450 Thermal Imaging Scope Night Vision Attachment OLED 1024×76
Guide TU450 Thermal Imaging Scope Night Vision Attachment OLED 1024×76 Guide TU450 Thermal Imaging Scope Night Vision Attachment OLED 1024×76

Guide TU450 Thermal Imaging Scope Night Vision Attachment OLED 1024×76

Product Details:
Place of Origin: CHINA
Brand Name: Milipol Asia
Certification: CE ROHS
Model Number: TU450
Payment & Shipping Terms:
Minimum Order Quantity: 200
Packaging Details: color box
Payment Terms: L/C, T/T, Western Union
Contact Now

Detail Information
Detector Type: 400×300@17µm, VOx Spectral: 8µm~14µm
NETD: 50mk Focal Length: 50mm
FOV: 7.78°×5.84° Display Screen: Full-color 0.39'OLED Screen,1024×76
Eyepiece: Pupil Distance Of Eyepiece 48mm,Eyepiece Magnification 14× Magnification: 3.2×~12.8×
Frame Rate: 50Hz Digital Zoom: 1×~4×
Color Palettes: White Hot, Black Hot,customized Red Hot, Green Hot, Iron Red, Blue Heat IP Level: IP67
Zero Calibration: 50m/100m/200m/300m/500m Certificate: RoHS, CE, FCC, EAC, UN38.3 (Battery Certificate)
USB: Type-C
Highlight:

TU450 Thermal Imaging Scope OLED

,

Scope Night Vision Attachment 1024×76

,

thermal rifle scope attachment OLED

Product Description

Guide TU Series TU450 50mm Thermal Imaging Rifle Scope with Red Dot
Product Highlights


HD OLED display, with 1x~4x smooth zoom, provides a comfortable visual experience

10 sets of zero calibration configurations can be saved, no need to recalibrate for different instruments

The reticle density can be zoomed in synchronously with the image to ensure the aiming accuracy

10 kinds of reticles, 6 kinds of reticle colors, 10 grades of reticle brightness, for your selection

Support photo and video, record wonderful moments at any time, easy to share

Remote control by WIFI or Bluetooth, for diversified usage

Rugged and durable, IP67 rating, working temperature -30°C~50°C, no fear of severe weather

10hrs super long duration time, changing battery without turn off, ensuring full day operations



Guide TU thermal imaging riflescope retains the appearance of a traditional daylight scope and perfectly integrates latest premium thermal imaging technology. The design of this scope accommodates long-term operating habits of hunters.

TU series adopts 400x300 high- sensitivity thermal detector with three different lens options of 25mm,35mm,50mm, and its 10 sets of zero calibration configuration make it convenient to switch between different instruments.


Properties of the reticle

Choice of 10 different reticles
Reticle available in 6 different colors and 10 levels of brightness
Reticle magnifies with the zoom, similar to First Focal Plane of optical rifle scopes
Save 10 zero profiles to use the rifle scope directly on different weapons without having to shoot again
Zero calibration distances: 50 / 100 / 200 / 300 / 500m
Easy manual elevation / width adjustment on the body

Attaching the scope to your weapon

Universal 30mm tube
With the help of 30mm mounting rings easy to use on many weapons
Mountings can be found under "optional accessories" or via this link
For Weaver/Picatinny, Dovetail (air gun) etc.

Useful functions

Hot Track function, where animals / people with cursor are directly "pointed" at
Stadiametric range finder (calculates the approximate distance to an animal or person)
Picture-in-Picture mode to further magnify a small part of the image
Wi-fi and Bluetooth to share and view recordings
When a smartphone/tablet is connected to the scope, someone else can enjoy everything that you see
Free app (iOS and Android)

User convenience

Shock resistance: 500G/1ms
IP67 certified: waterproof, dustproof and shockproof
Ultra-long operating time of up to 10 hours using only one 18650 battery (charger + battery included)
Weighs only 940 grams
USB-C connection (cable included)
Certifications: RoHS, CE, FCC, EAC, UN38.3 (battery certificate)

Application
> Outdoor Observing
> Law Enforcement




Package Contents


Standard Thermal Imaging Riflescope, Lens Cover, Adapter, Battery, Charger, TYPE-C Data Cable, Micro HDMI Video Cable, Eye Mask, Picatinny Tube Clip×2, Pouch, Shoulder strap, Quick Start Guide
Optional Battery, Remote Control
Detection Range
Human:1.8m×0.5m 700m 1000m 1400m
Vehicle:2.3m×2.3m 1700m 2400m 3000m
Recognition Range
Human:1.8m×0.5m 350m 500m 700m
Vehicle:2.3m×2.3m 700m 1000m 1400m

In the Box
  • Thermal Scope (35mm lens)
  • Lens protection
  • Eyepiece cap
  • Storage pouch
  • USB-C cable
  • Micro-HDMI cable
  • 186500 battery
  • Battery charger
  • Lens cloth
  • User manual
